Roadrail vehicule for railway market

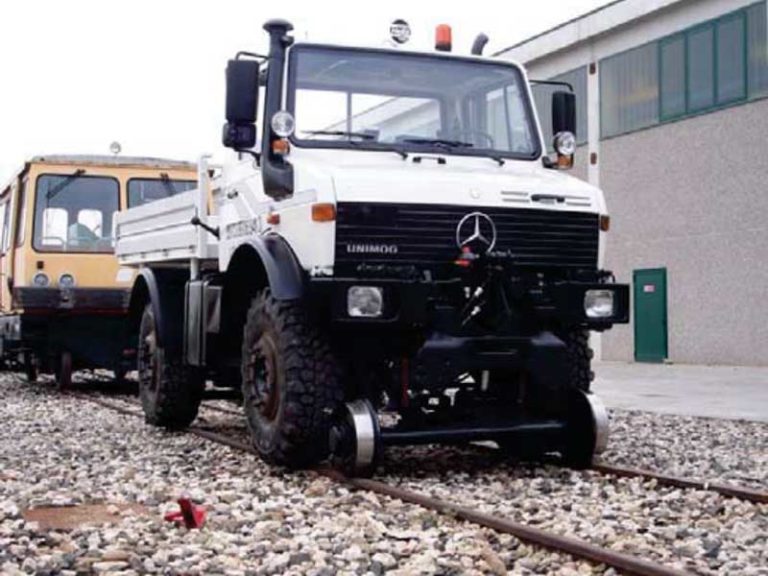

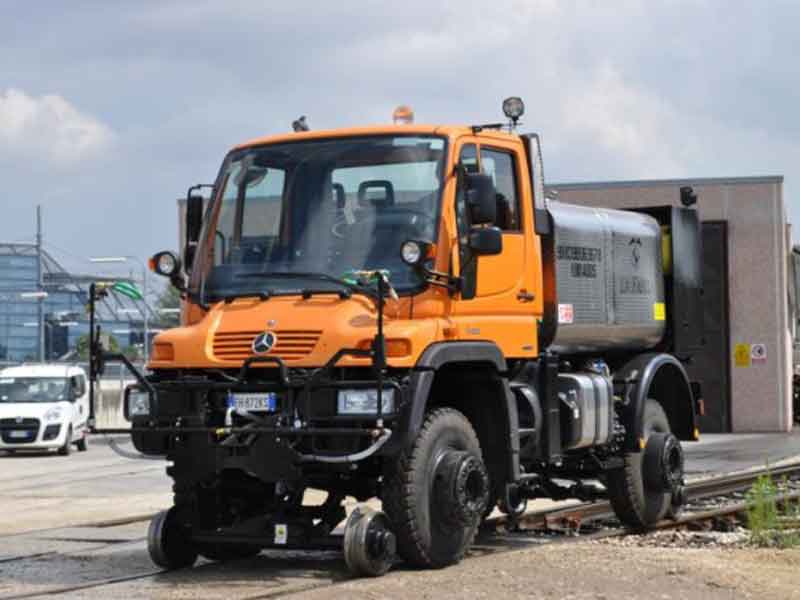

ROADRAIL VEHICLE UNIMOG©

ROADRAIL VEHICLE UNIMOG
  • Road Rail vehicle for transport of personnel or equipment, or equipped for track maintenance /construction works.
  • Based on Mercedes-Benz UNIMOG U400 Euro 5
  • Complete autonomy to switch from road to rail or off-road.
  • Ideal for seaport, mine, quarry, foundry, steelwork, railway/metro work.
  • Railway system complies with EN 15756

Technical data :

  • Diesel engine : 175 kW
  • Speed on rail : 35 km/h
  • Speed on road : 90 km/h
  • Max cant : 160 mm
  • Max gradient : 7%
  • Towing capacity : 80 t
  • Standard gauge : 1 435 mm
  • Curve radius mini: 25 m
  • Diameter rail wheels: 330 mm

ACCESOIRIES FOR UNIMOG©

Some exemples

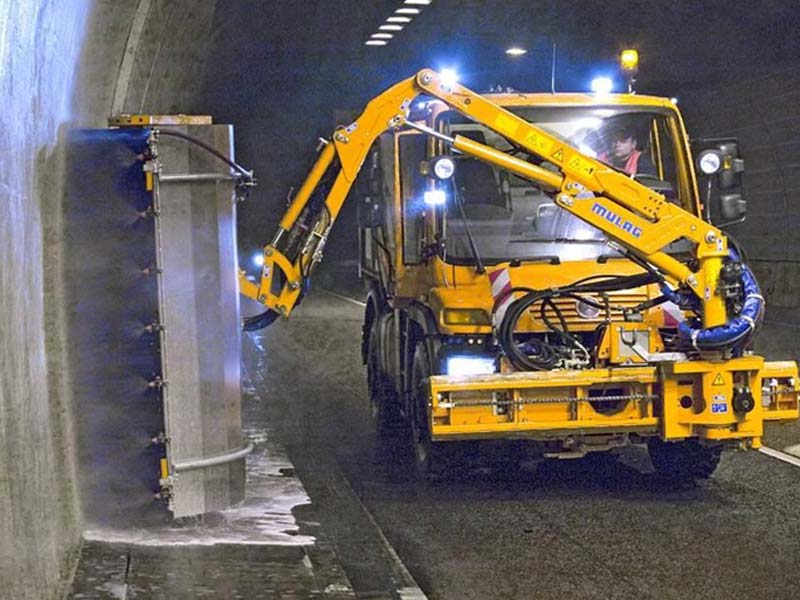

Cleaning unit
Cleaning unit for unimog

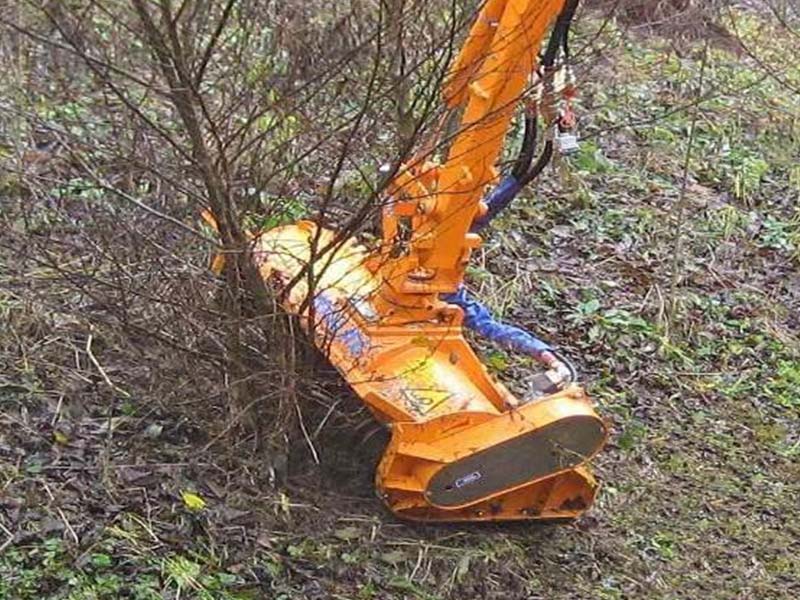

Tree cutter
tree cuter for unimog

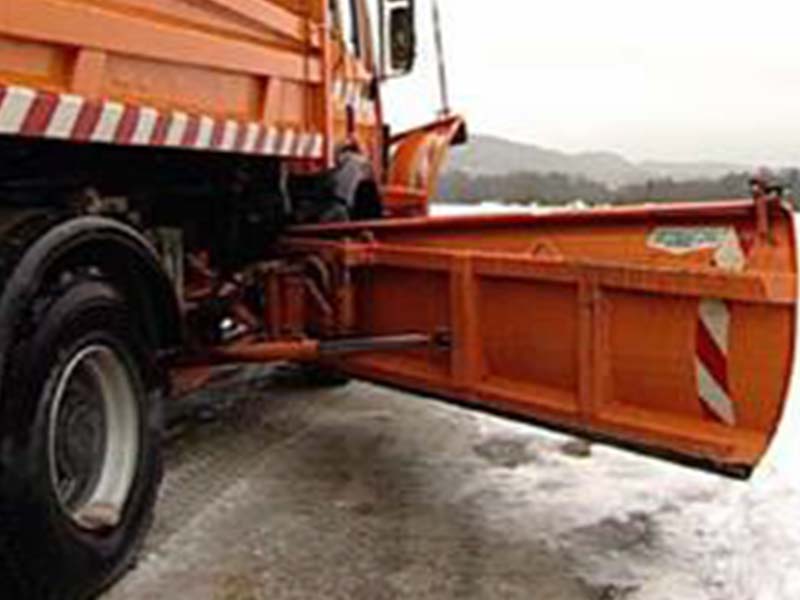

Ballast grade
ballast grade for unimog

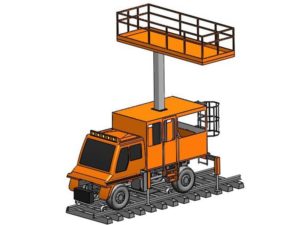

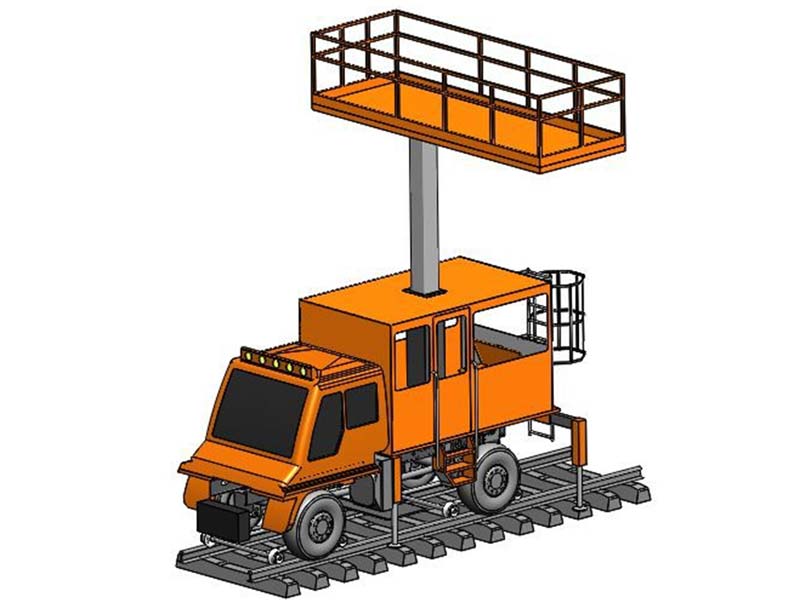

Elevated Plateform
elevated plateform for unimog

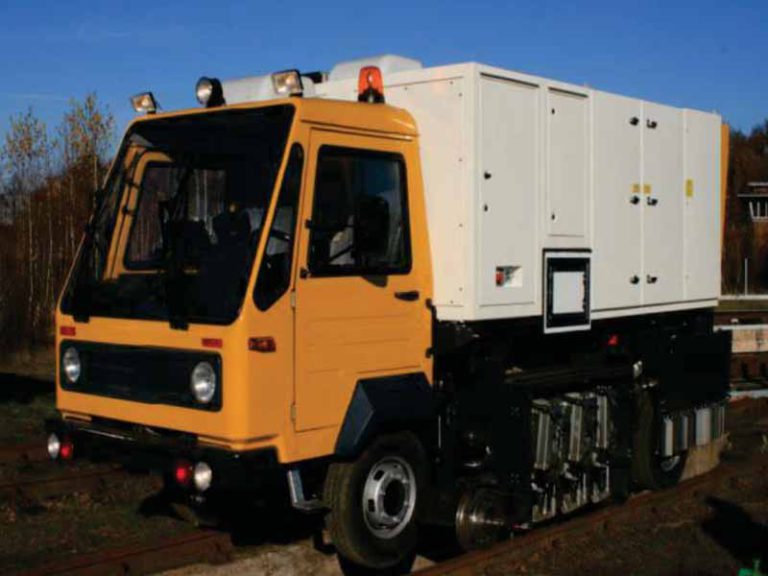

10 STONES ROADRAIL GRINDER RO-V149

ROADRAIL GRINDER RO-V149
  • The Ro-V149 grinder is a roadrail of compact size for use in main lines and also public transport networks.
  • General purpose of the grinding unit is grinding of main tracks as well as turnouts with rotating stones, contact grinding and removal of corrugation and particular defects such as squats, headchecks and pittings.
  • It is equiped with 10 cup stones.
  • Option : 8 cup stones and 2 disks stones.

Technical data :

  • Diesel Engine : 110kVA/3x400V
  • Weight : 6 400 kg
  • Speed : 20 km/h
  • Working speed : 0-5 kph
  • Max gradient : 8%
  • Exhaust system : 8 000 m3/h

Roadrail grinder model RV195

Road Rail grinding machine Ro V 195 8x
  • Base vehicle: Mercedes Benz Actros 28t
  • 8 grinding stones
  • Rail chassis with 2 bogies
  • 3 axles
  • Adjustable gauge 1000-1668mm

Technical data :

  • Weight : 27500 kg
  • Size : 12000 x 2525 x 3550/3650 mm
  • Max. road speed : 80km/h
  • Max. Rail speed : 50km/h
  • Grinding power : 1/15kW
  • Electric Max grinding power : 11/15 kW
  • Working speed : 0-5 km/h
  • Diesel electric power system : 120 kVA
  • Dust collection system : 2×4000 m3/h – Automatic pulsing
  • Adjustable gauge : 1000 – 1500 mm
