Rail handling equipments

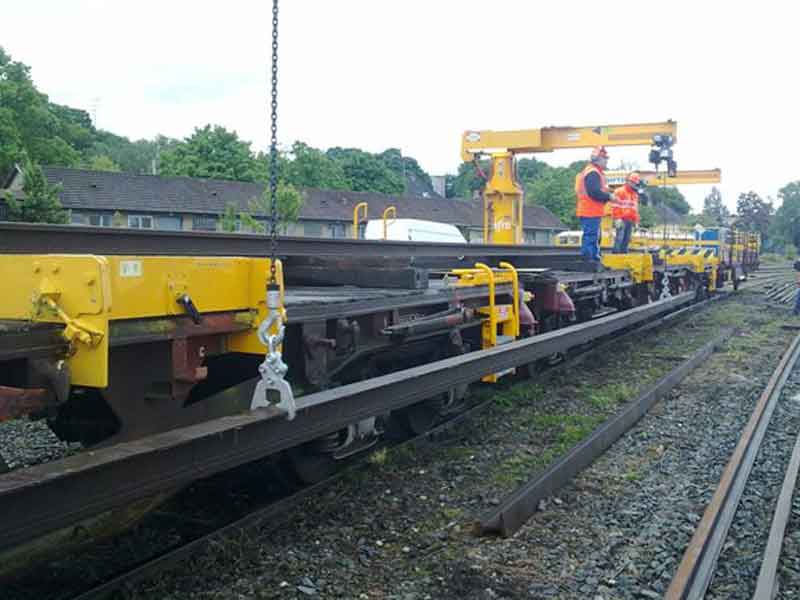

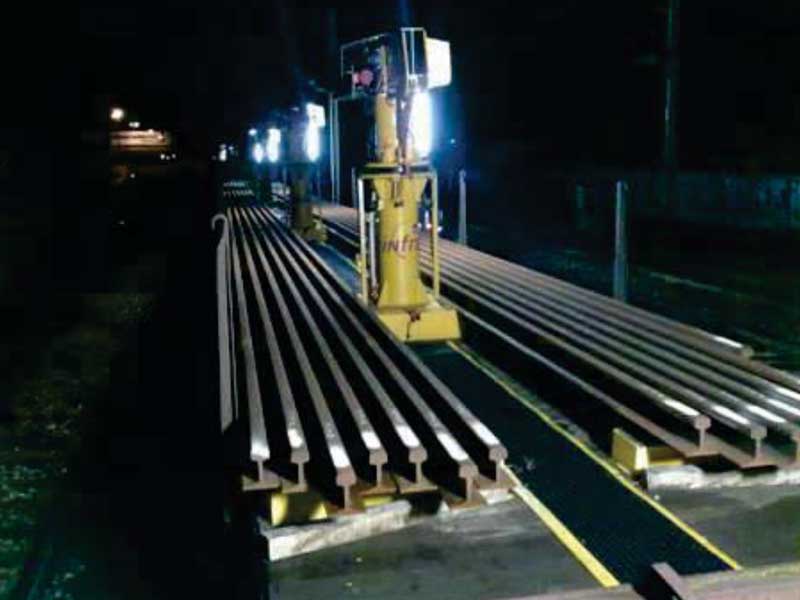

Rail loaders model CR3PR

RAIL LOADERS MODEL CR3PR

The 4 loaders intended to load and unload rails of 36 m long maximum, are installed by pair on 2 wagons, radio-controlled by one operator, synchronized control of 2, 3 or 4 hoist.

The electric supply from one generating set is located underneath or on an separate wagon.
There is additional plugs for connecting hand tools.

The wagons can be returned or reversed which increase of productivity and deliver fast operation,
There is an increase of operator safety with control from the ground, thus no risk of falling .

Technical data :

SWL of each loader:  750 kg.
Lifting speed fast: 4 m/min. / slow 1 m/min.
Translation speed:16. m/min .
Mini length of rails: 12 m.
Weight of loader: 1491 kg.
Height: 2 602 mm.
Generating set:   30 kVA

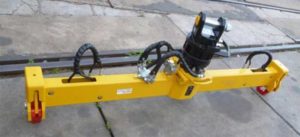

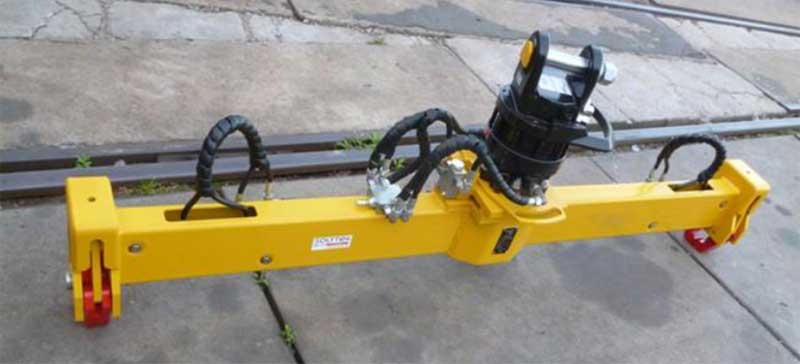

Hydraulic rail beam PRH18

Hydraulic rail beam
  • This hydraulic rail beam can be used with different rail profiles ( Vignole, grooved rails, special rails) by changing grips only.
  • Equipped with a safety device preventing opening of grips under load.
  • Safety valve in case of hose rupture.
  • In option : rotator and telescopic model
  • Supplied with CE certificate and lifting certificate.

Technical data :

Capacity: rails 18m
Length: 2 120mm
Width: 330 mm
Distance between grips: 2 000 mm
Safety load: 1 500 kg
Pressure: 350 bar
Weight: 180kg

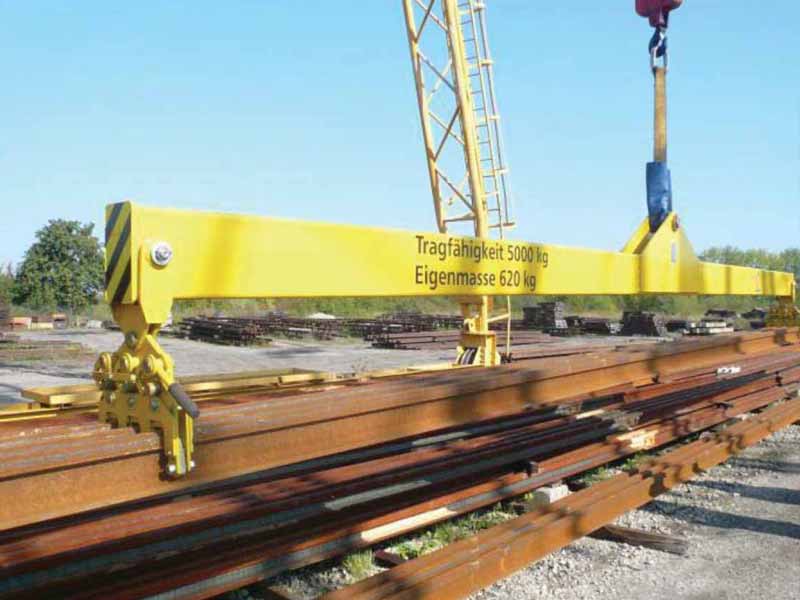

Rail lifting beam PRM3

Rail lifting beam

rail liftng beam gripper

  • This lifting beam has been designed for handling rails, up to a maximum of 5 rails, located side by side. Length of the rails from 10 to 18 m, the distance of the fixing points being 5 m or 9 m.
  • It must be used with our type RO-V 216 grippers, of compact construction, rigid, easy to use.
  • The levers are connected by a cable system allowing an operator to open all the grippers without entering the danger zone.
  • The clamps are semi-automatic, they close automatically on the mushroom, without the possibility of opening under load.
  • The clamps open automatically when the load is placed on the ground. A manually operated lever maintains the open position to allow lifting of the lifter.
  • Supplied with CE certificate and lifting certificate

Technical data :

Weight: 570kg
Length: 9 120mm
Width: 250mm
Heigth without grips: 1 300mm

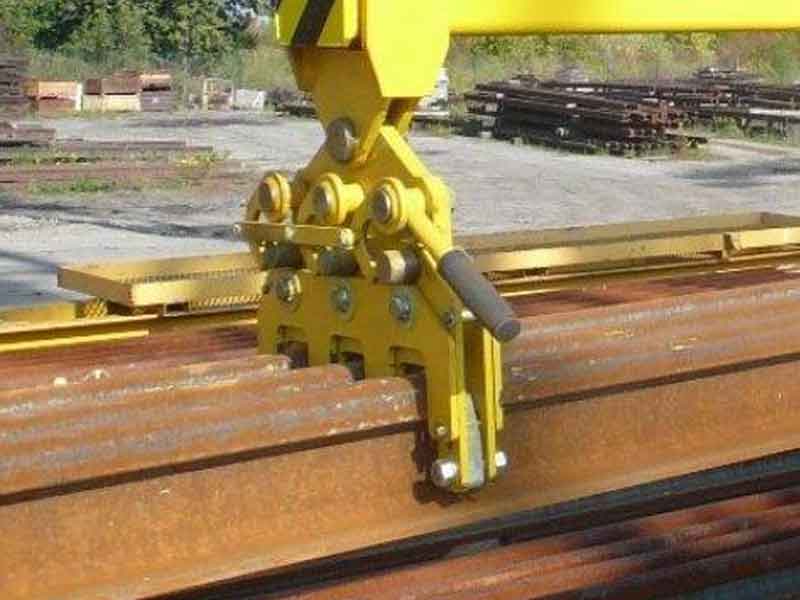

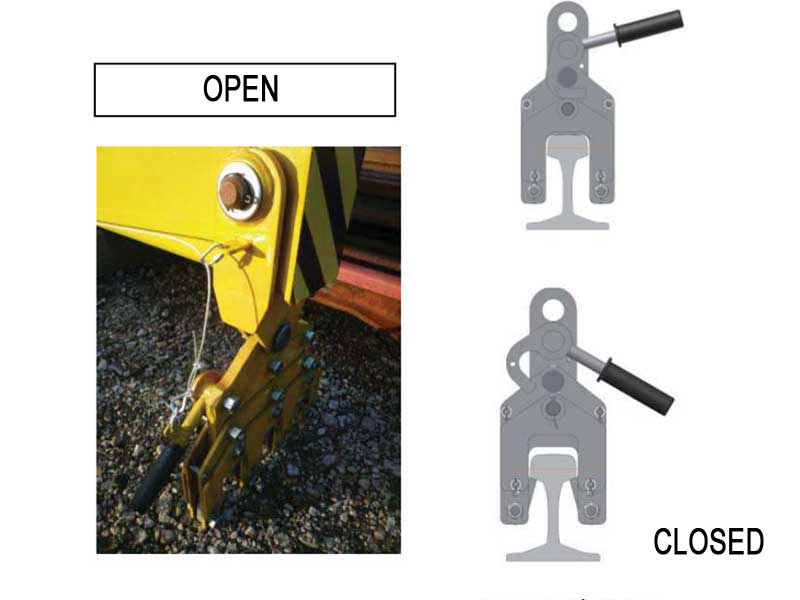

Rail grips

Rail grips RO V216

  • This rail grips is for Vignole rails, grooved rails, special rails.
  • The rail grips can handle up to 5 rails.

Special grips on request.

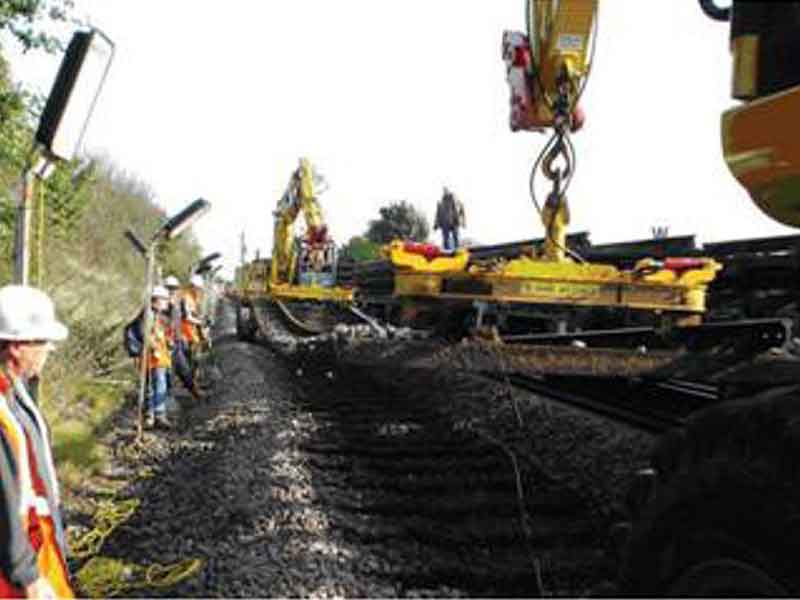

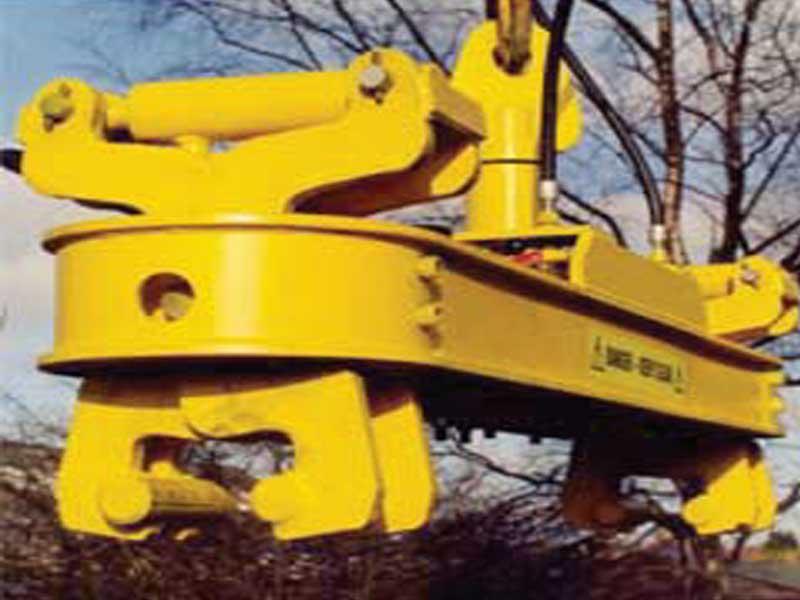

Universal beam PU100

Universal beam model PU100-1

universal beam pu100

This beam is designed to be used in pairs for tandem lifting track panels, or singly for handling rail.
With a ten ton safe working load, these lifting beams are a great time saver on site for handling, stacking and  loading track panels.
For handling track panels up to 18m long when used in tandem, and elementary rails thanks to rotative gripping heads.

  • Check Valves fitted to gripping rams
  • Safety lockout valve to prevent jaws opening whilst
  • carrying load with over ride for scrap clearance work
  • Heavy duty 10 ton rotator available
  • Fully driver operated
  • Lift, carry, stack, load track panels up to 60ft
  • Rotator in option

Technical data :

SWL: 10 000kg
Length: 1 820kg
Width: 380mm
Weight without rotator: 380kg / Weight rotator 80 kg
Max. pressure: 250 bar / Mini. pressure 90 bar .

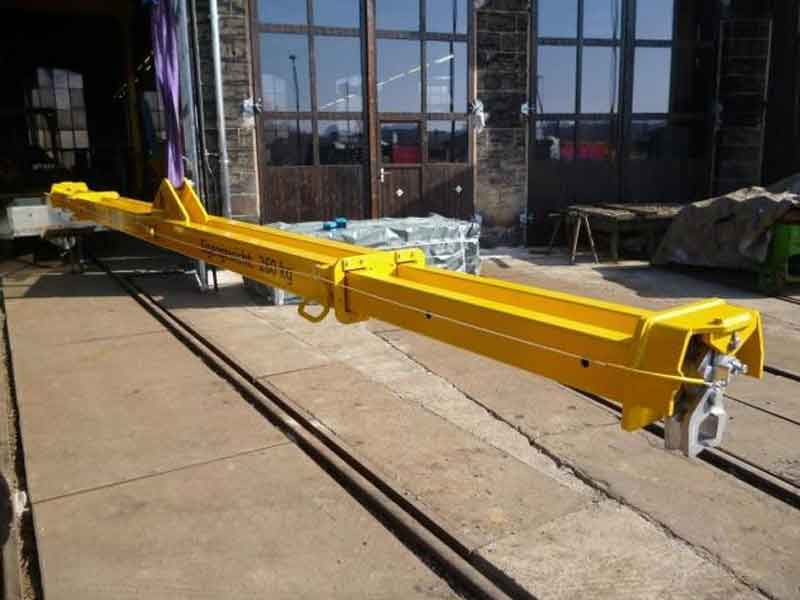

Telescopic hand operated beam Ro-V288

Telescopic hand operated beam Ro V288

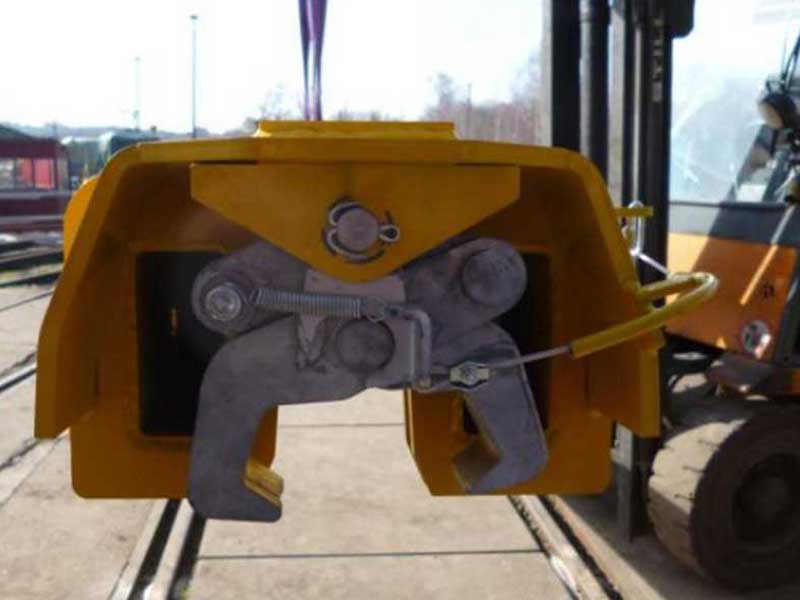

operated beam Ro-V288

This telescopic rail lifter is intended for handling elementary rails up to 25 m in length.
The clamps are semi-automatic, they close automatically on rail, without the possibility of opening under load.

The clamps open automatically when the load is placed on the ground. A manually operated lever maintains the open position to allow lifting of the lifter.

The levers are connected by a cable system allowing an operator to open all the grippers without entering the danger zone.

Supplied with CE certificate and lifting certificate.

Technical data :

SWL: 1 500kg
Length: 4 to 6m
Weight: 280kg

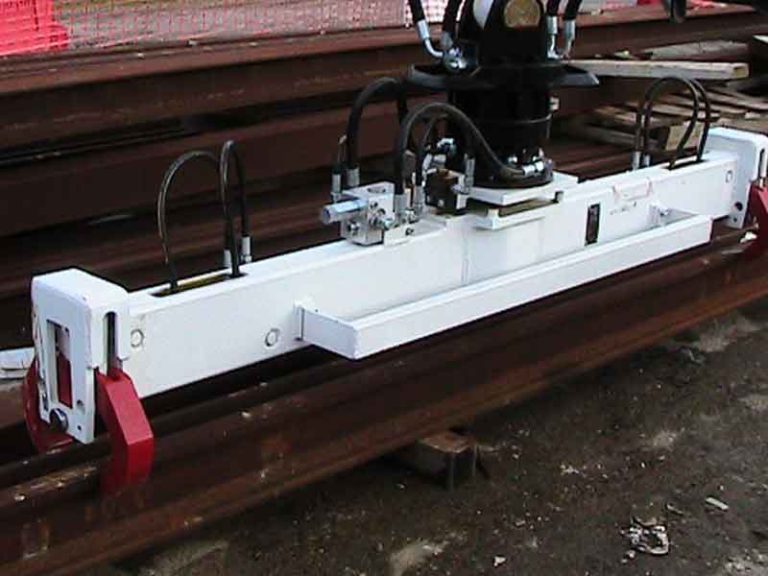

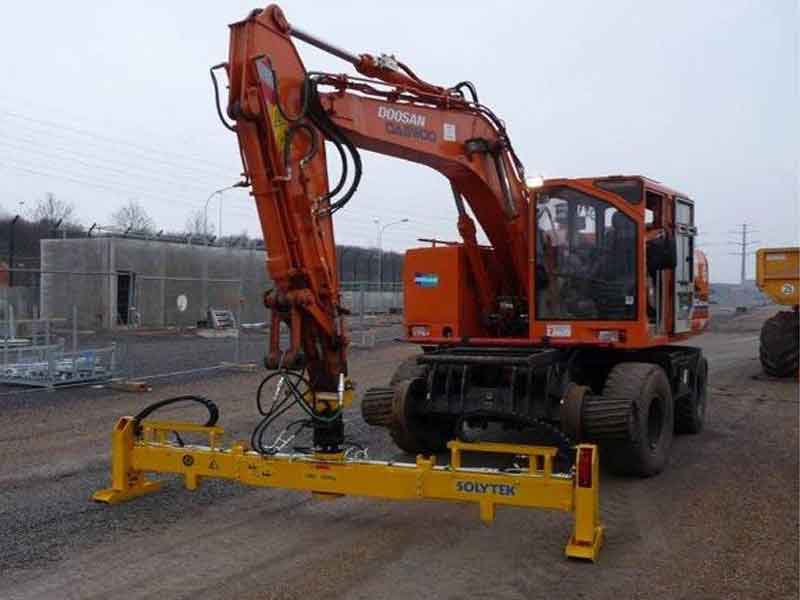

Hydraulic telescopic beam

Hydraulic telescopic beam
  • This hydraulic telescopic beam can be used for handling different rail profiles (Vignole, grooved rails, special rails) by changing grips only.
  • Safety device preventing opening of grips under load.

Technical data :

Capacity: 20m
Length: 3 600 to 6 200mm
Weight: 650kg
