Steel section manipulator

Steel section manipulator model  SM15

railway catenary assembly crane details

The Steel section Manipulator SM15 has been designed to handle, erect and install track electrification steel masts, for a safety use :

  • safety use.
    Combination of scissor grab and hydraulically telescopic legs.
  • The load is gripped on all four faces using soft urethane pads preventing any damage to galvanized surfaces, and any sliding of the load for an improved safety.
  • A roto tilt adapter head enables precise positioning for accurate placement onto bolted flanges, tube piles.
  • Check valves on all grip cylinders.
  • A unique pendulum valve which can only be overriden by the banksman from outside the cab ensure safety.
  • Applicable to square, rectangular, I-beam, fabricated sections.
  • Delivered with CE and lifting certificates.

Options :

  • Handling of any type of section.
  • Adaptation to any type of Excavator.

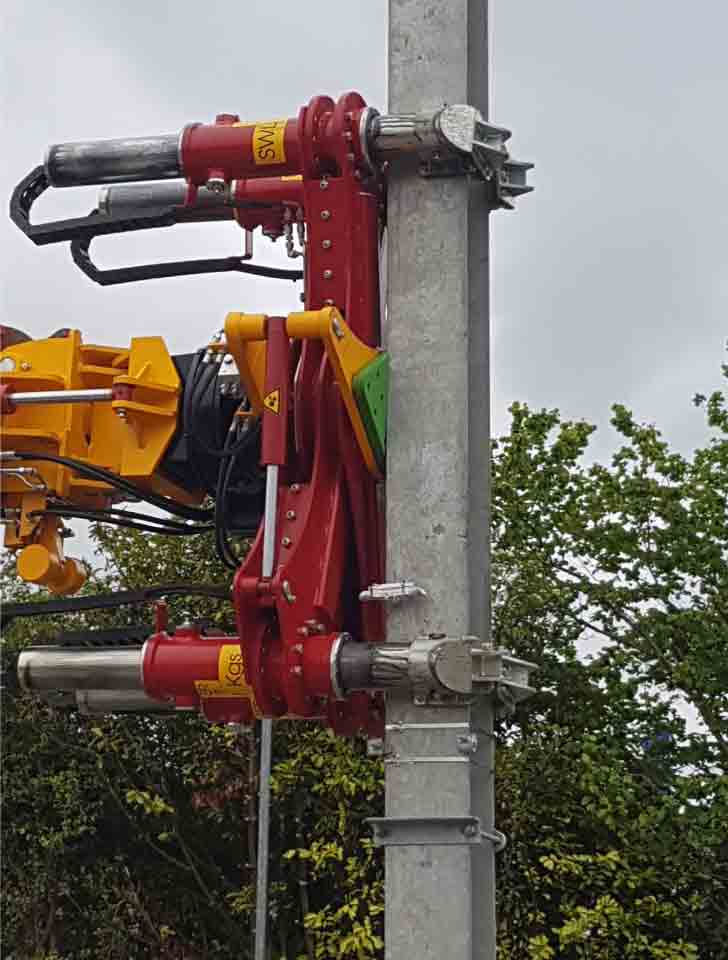

catenary handling crane

Technical Specification :

  • Weight : 1400 kg
  • Safe Working Load: 3 750 kg
  • Min. Load Section : 200 x 200 mm
    Max. Load Section: 650 x 650 mm
    Sections carrées, rectangulaires, poutres en I
    Head tilt +/- 30°
  • Grab circuit
    – Max. Hyd. Pressure 210 Bar
    – Min. Hyd. Pressure 110 Bar
  • Tilt circuit
    – Max. Hyd. Pressure 210 Bar
    – Min. Hyd. Pressure 90 Bar
  • Rotator circuit
    – Max. Hyd. Pressure 120 Bar
    – Min. Hyd. Pressure 90 Bar

Download brochure
