switch and pannel laying machines

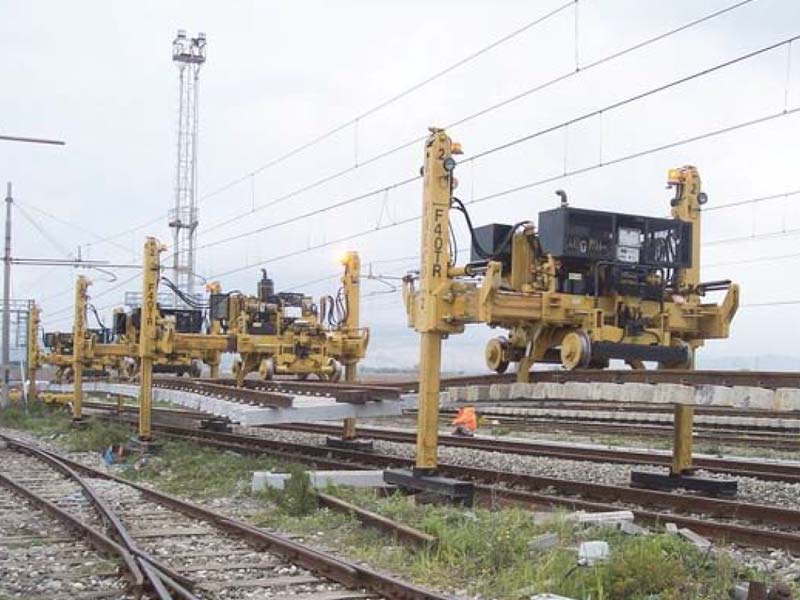

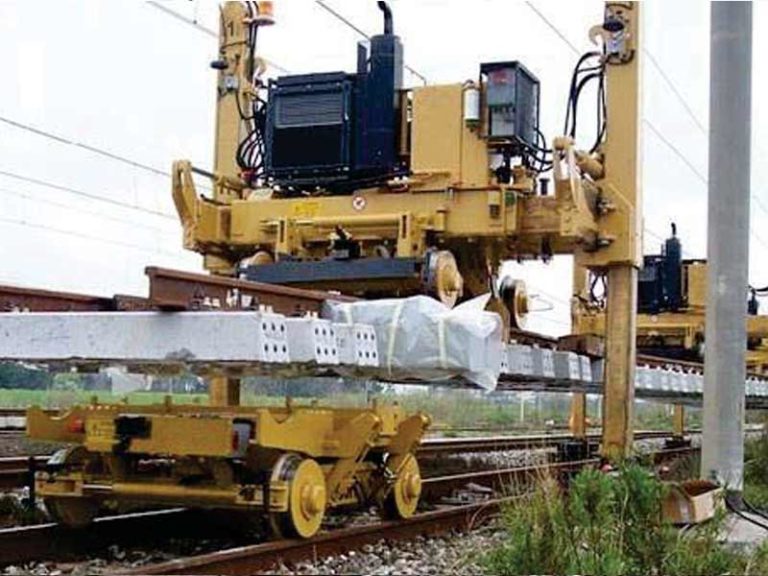

Radio-controlled laying granty F 40 TR

switch laying granty F40-TR

The track and switch laying granty F40 TR is designed for the longitudinal and lateral laying to the track and switch. With low set-up time and very quick work cycles, this radio-controlled machine permit a extremely fast laying work. Aviable in any track gauge.

The machine is self-loading on truck and on wagon.

Ensuring a great lifting capacity, easy of use and work safely, this machine La Falco solution for track and switch laying.

Thanks to patented work system, this machine has a laying speed impossible to equal for any other machine on the market

Specification :

  • Engine : 88KW (120 HP) at 2300 rpm
  • Lifting capacity: 40 Ton
  • Laying type: Frontal and lateral
  • Weight: 9800Kg
  • Command type: Radio-controlled, automatic patented work mode
  • Track Gauge: Avialable in any track gauge

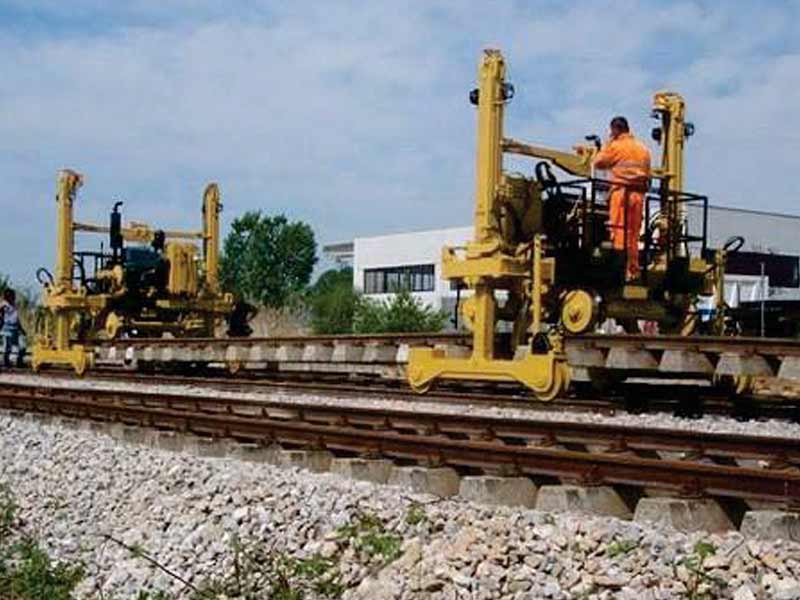

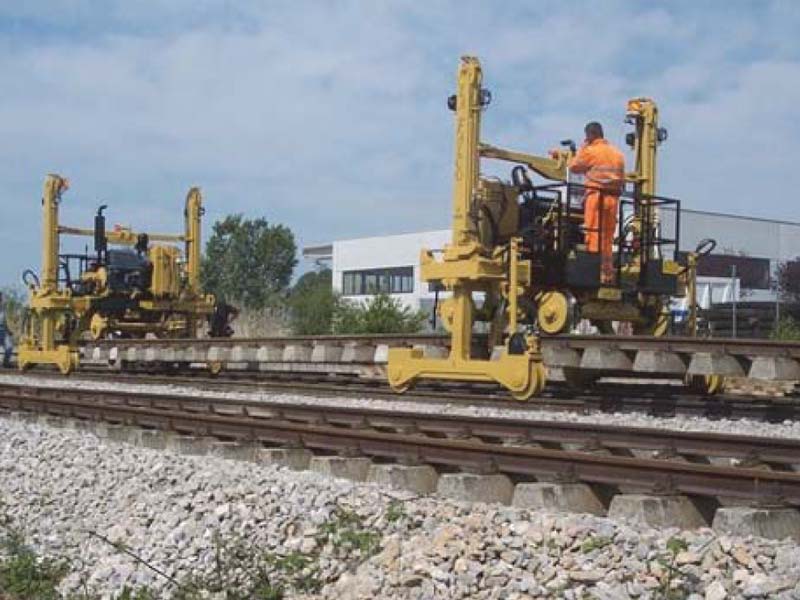

Granty T 30 for lateral laying

gantry T30

The granty T30 is designed for the lateral laying of track and switch, and longitudinal laying by service rail or crawlers.
With low-set-up time and very quick work cycle, this machine permit a extremely fast laying work.

Aviable in any track gauge, it can be carried on a railway (according UIC 505.1 profile) and on road with normal transport.

The lateral laying is performed by machine’s shoes. The longitudinal laying is performed by trolleys or crawlers mounted on the machine.

Specification :

  • Engine : 47.8KW (65 HP) at 2300 rpm
  • Lifting capacity: 30 Ton
  • Laying type: Frontal and lateral
  • Weight: 4800Kg
  • Command type: Manuel or Radio-controlled
  • Track Gauge: Avialable in any track gauge

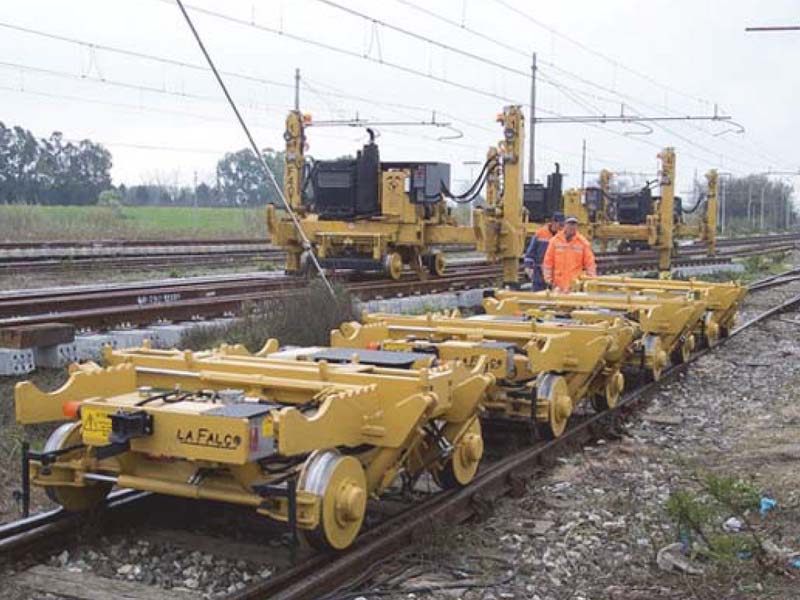

Trolleys CTS 30 & CTS 80

trolley cts 30-80

Motorized and radio-controlled trolleys designed and built for the transport of track and switch from building place to laying place.

Equiped with liftable, movable and rotatble support plane, these trolleys allow to move the switch or the track during the transport to overcome obstacles on the way.

In team with laying gantries, these machines are the best choice for infrastructure railway laying.

CTS 30 Specification :

  • Engine : 30.6KW (40 HP) at 3600 rpm
  • Lifting capacity: 80 Ton
  • Weight: 6500Kg
  • Track Gauge: Avialable in any track gauge



CTS 80 Specification :

  • Engine : 15.3KW (20 HP) at 3600 rpm
  • Lifting capacity: 50 Ton
  • Weight: 4000Kg
  • Track Gauge: Avialable in any track gauge
